Description

The machine is ideal for sealing small packages, which adopts a constant temperature control system and step-less speed regulation mechanism.

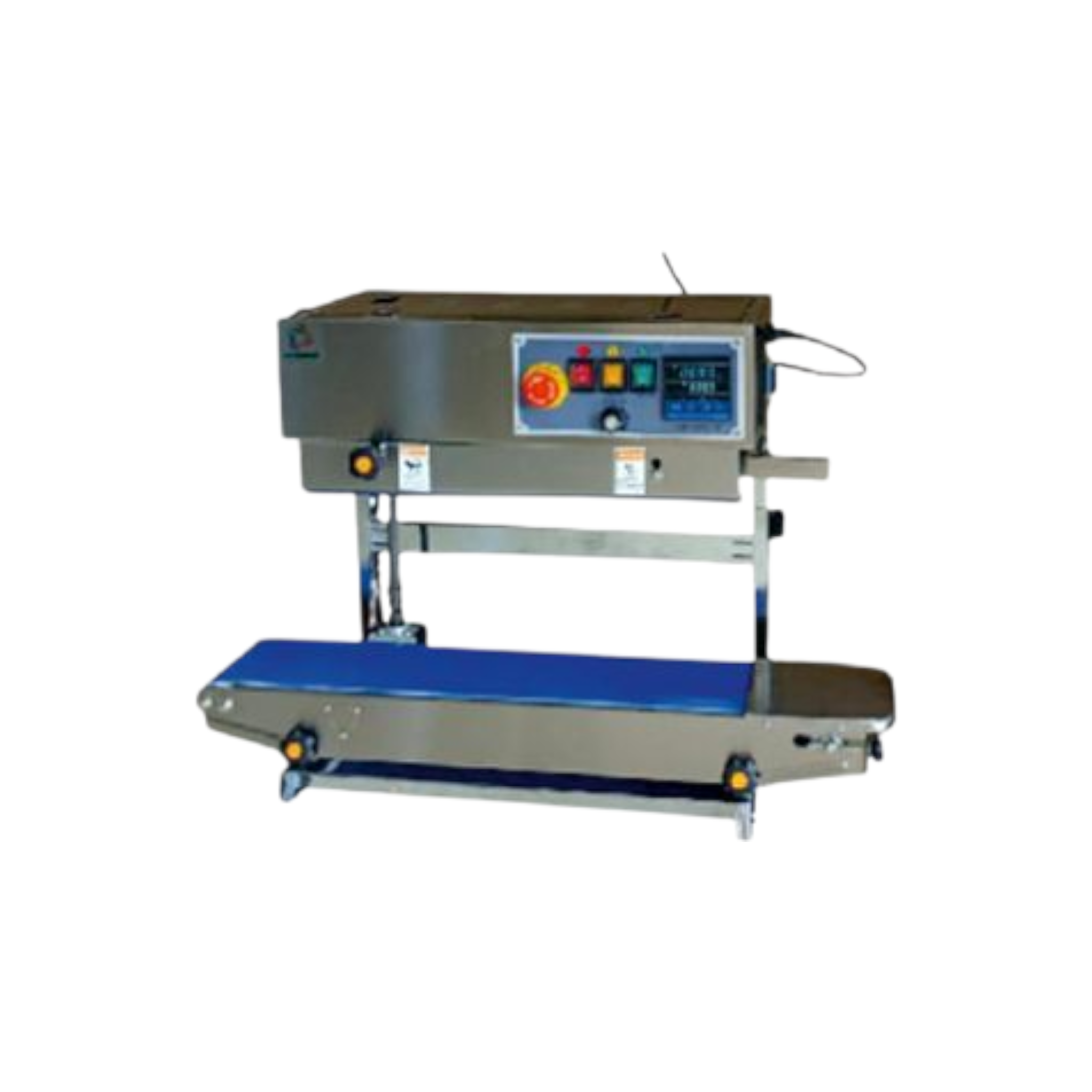

  • Semi-Auto Continuous Vertical Industrial Band Bag Sealer
  • Model : W1111225020051 FRB770II1KGVS/S

Features:

  • Reliable performance
  • Simple operation
  • Convenient maintenance
  • Wide range of application
  • Constant temperature control system
  • Stepless speed regulation
  • Embossing wheel and counting device are optional



Application:

  1. FRB-770 series plastic film bag continuous sealing machine is suitable for sealing all kinds of heat-sealed packages continuously. Such as PE bag, accordion bag, aluminum foil bag, kraft paper bag, electrostatic bag, Yin-Yang bag.
  2. It widely use in the food, pharmaceutical industry, chemical industry, agriculture, lubricating oil, and other industries.
  3. To use in the place where there is a restriction on space, such as small factory, monopolization shop, and workshop, etc.

Parameters

Model

FRB-770I

FRB-770II

FRB-770III

Voltage (V/Hz)

AC 220/50

Motor Power (W)

50/100
5
5

Sealing Power (W)

300*2

Speed (m/min)

0-16(0-24)

Seal Width(mm)

10

Distance from Sealing Center to Conveyor(mm)

15-40

150-270

15-40

Distance from Base Plate to interior Conveyor(mm)

60-120

-

60-120

Max.Distance from Sealing Center to Bag Opening(mm)

21

Temperature Range

0-300

Printing Type

Steel embossing wheel for printing(optional)

Conveyor Size(L*W)(mm)

844*153

Overall Conveyor Load(kg)

≤10

≤10

≤10

External Dimensions(L*W*H)(mm)

844*375*310

844*390*450

844*555*800

Net Weight (Kg)

21.5

24.5

29





Dimension

FRB-770I Hualian band sealer size

Industrial Band Bag Sealer FRB770II Semi-Auto Continuous

Sale priceR 12,100.00

Including VAT

Excluding delivery
